1.Product Description
| Item name | titanium block/ingot/billet |
| Standard | ASTM B381,ASTM F67,ASTW F136 |
| Technique | Forging ,Machining |
| Surface | Acid surface or polishing, sand blasted surface |
| Grade | Gr1 Gr2 Gr3 Gr4 Gr5 Gr6 Gr7 Gr9 Gr11 Gr12 Gr23 Ti15333 BT1-00 BT1-0 BT1-2 |
| Processing | Forged |
| Size | Width 500-1500mm, L 1000-6000mm,Thickness 0.5-300mm or as the clients request |
| MOQ | 5kgs |
| Application | Industrial,Medical,aviation,military,petro-chemical,metallurgy,electronics ,chemical,etc |
2.Features:
1) Low Density and High Specification Strength
2) Excellent Corrosion Resistance
3) Good Resistance to Effect of Heat
4) Excellent Bearing to Cryogenics Property
5) Nonmagnetic and Non-toxic
6) Good Thermal Properties
7) Low Modulus of Elasticity
3. Chemical component
| Grade | Ti | Al | V | Zr | Fe | Si | C | N | H | O | others |
| Gr1 | Bal | 0.25 | 0.10 | 0.03 | 0.015 | 0.2 | |||||
| Gr2 | Bal | / | / | / | 0.15 | 0.10 | 0.05 | 0.03 | 0.015 | 0.15 | 0.3 |
| Gr3 | Bal | / | / | / | 0.30 | 0.15 | 0.10 | 0.05 | 0.015 | 0.20 | 0.3 |
| Gr4 | Bal | / | / | / | 0.40 | 0.15 | 0.10 | 0.05 | 0.015 | 0.30 | 0.3 |
| Gr5 | Bal | 5.5~ 6.75 | 3.5~ 4.5 | 0.8~ 2.0 | 0.30 | 0.15 | 0.10 | 0.05 | 0.015 | 0.20 | 0.3 |

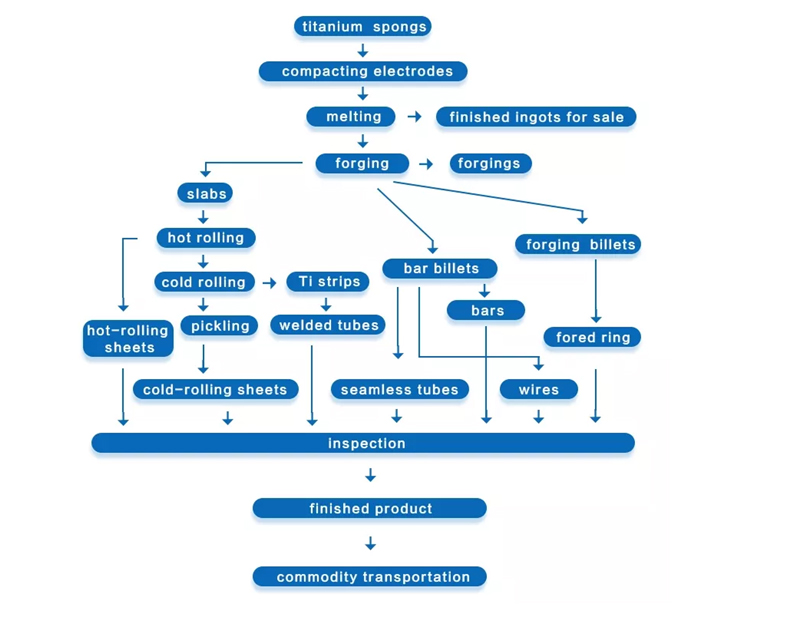

4.Related Processing Flaw and Equipment
